A Review Of High Value 300-615 Samples

NEW QUESTION 1

Refer to the exhibit. An engineer is configuring boot from iSCSI on a Cisco UCS B-Series Blade Server, but the LUN fails to mount. Which action resolves the issue?

• A. Statically configure the target information in the Boot Policy.
• B. Configure an MTU size of 9000 on the appliance port.
• C. Configure a QoS policy on the vNIC.
• D. Set a connection timeout value of 250 in the iSCSI Adapter Policy.

Answer: A

NEW QUESTION 2
A vPC Type-1 inconsistency between two vPC peers in a VXLAN EVPN setup is discovered. Which two actions need to be attempted to resolve the issue? (Choose two.)

• A. Configure the NVE interfaces to be Up on both switches.
• B. Set a different distributed gateway virtual MAC address.
• C. Set a different secondary IP addresses on NVE source-interface.
• D. Configure the same VNI to multicast group maping.
• E. Set a different primary IP addresses on NVE source-interface.

Answer: AD

NEW QUESTION 3

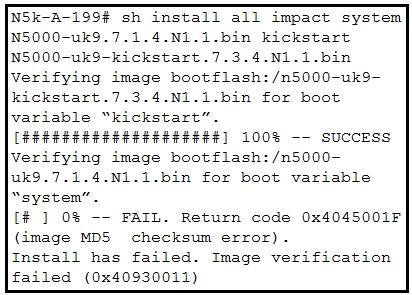

Refer to an exhibit. An engineer is troubleshooting an upgrade failure on a switch. Which action resolves the issue?

• A. Save the system image in NVRAM.
• B. Use the same system image as the kickstart image.
• C. Load a new system image.
• D. Reload the same system image.

Answer: C

NEW QUESTION 4

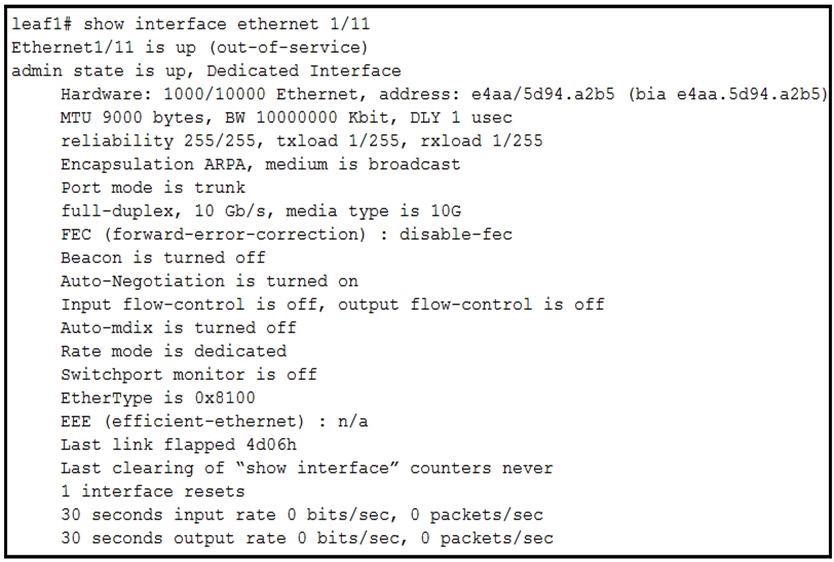

Refer to the exhibit. An engineer is performing a health check on ACI. Which statement about interface Ethernet 1/11 is true?

• A. The interface is working correctly and fully operational, but it is not in use.
• B. The interface policy is misconfigured.
• C. “out-of-service” is the default interface status in ACI.
• D. “out-of-service” indicates that no service graph is in use for this interface.

Answer: B

NEW QUESTION 5
Refer to the exhibit. A switch is being downgraded to an earlier release because of a problem with the current release. After the switch is downgraded, it can no longer forward traffic. Which action resolves the issue?

• A. Enable ISSD after the downgrade is complete.
• B. Roll back to the original image.
• C. Reload the switch.
• D. Shut and no shut the interfaces to the FEX.

Answer: B

NEW QUESTION 6
An IOM fails during a firmware upgrade and is unresponsive. Which action recovers the module?

• A. Restore UCSM configuration from backup.
• B. Roll back to the previous firmware.
• C. Use AutoInstall to reinstall the firmware.
• D. From the peer IOM, reset the faulty module.

Answer: B

NEW QUESTION 7
Refer to the exhibit. Sw1 and Sw2 are two Cisco Nexus 9000 Series Switches that run Cisco NX-OS. They are VTEPs in the same vPC domain. Which statement describes what happens in this scenario?

• A. Sw1 drops all traffic because there is no (S, G) OIF list to encapsulate VXLAN multicast packets and send them out to the underlay network through the uplink interfaces.
• B. Sw1 performs the VxLAN multicast encapsulation and decapsulation for all traffic associated with the VxLAN VNIs.
• C. Sw1 and switch 2 perform the VxLAN multicast encapsulation and decapsulation for all traffic associated with the VxLAN VNIs, depending on the hashing.
• D. Sw2 did not send an IP PIM register to the rendezvous point for the multicast group of the VXLAN VNI.

Answer: B

NEW QUESTION 8
An upgrade of protected RPMs from the Bash shell did not take effect. Which action is required for the changes to take effect?

• A. Restart the Bash shell.
• B. Reload the switch.
• C. Upgrade the RPMs from the Guest shell.
• D. Disable and reenable the Bash feature.

Answer: D

NEW QUESTION 9

Refer to the exhibit. The EEM script fails to send an SNMP trap when a user attempts to enter configuration mode. Which configuration is missing from the script?

• A. event statement
• B. event-default action statement
• C. policy-default action statement
• D. IP address of the SNMP server

Answer: D

NEW QUESTION 10
An engineer is implementing a storage VDC, but fails. Which two prerequisites must be in place before a storage VDC is implemented? (Choose two.)

• A. M-Series module
• B. ESSENTIALS license
• C. STORAGE-ENT license
• D. FCoE license
• E. F-Series module

Answer: DE

NEW QUESTION 11
Refer to the exhibit. A network engineer configures an EEM script to get a syslog notification after a configuration change. This message appears when the engineer must make a new configuration to this switch. Which configuration did the engineer neglect to apply in the script for it to function properly?

• A. event cli match ‘configure terminal’
• B. event policy-default count 1 time 100
• C. event syslog occurs 10
• D. action 2.0 event-default

Answer: D

NEW QUESTION 12
Refer to the exhibit. A network engineer has connected the Nexus switch management port to the Internet using DHCP to allow the Guest shell running on the switch to download Python packages. The engineer can ping google.com successfully from the Nexus switch, but the Guest shell failed to download any Python packages. Which action resolves the problem?

• A. Update the Python packages on the Cisco Nexus switch directly.
• B. Manually configure DNS in the Guest shell, even if it is claimed on the Cisco Nexus switch through DHCP.
• C. Manually configure NTP in the Guest shell.
• D. Connect Guest shell to data plane interfaces to be able to connect to the networks outside the Cisco Nexus switch.

Answer: B

NEW QUESTION 13

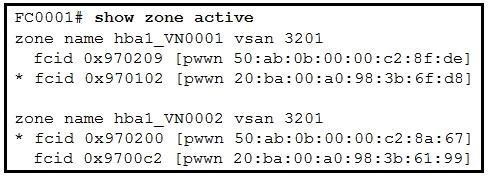

Refer to the exhibit. The initiator that has FC ID 0x970102 fails to communicate with the target that has FC ID 0x970200. What action resolves the issue?

• A. Reconfigure the initiator and the target to be in the same zones.
• B. Reactivate the zoneset.
• C. Reset the port for FC ID 0x970102 and FC ID 0x970200 to log in to the fabric.
• D. Reset the port for FC ID 0x970209 and FC ID 0x9700c2 to log in to the fabric.

Answer: B

NEW QUESTION 14

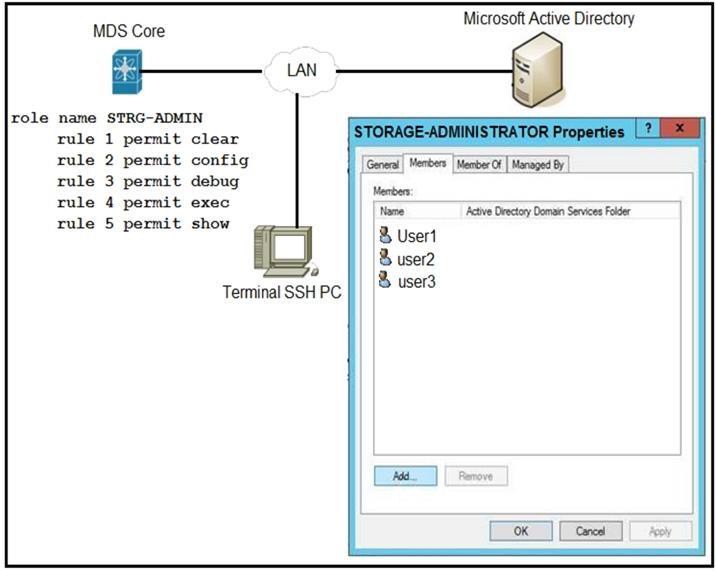

Refer to the exhibit. An engineer is troubleshooting why user1, user2, and user3 from group STORAGE-ADMINISTRATOR in Microsoft Active Directory cannot log in to the Cisco MDS SSH CLI. Which action resolves the issue?

• A. Configure the role name to match the group name on Microsoft Active Directory.
• B. Include specific users into MDS role configuration.
• C. Configure SSH logins on Cisco MDS switch.
• D. Integrate Cisco MDS with Microsoft Active Directory.

Answer: A

NEW QUESTION 15
Cisco Unified Computing System Manager raises a critical error message that indicates that the system has overlapping Ethernet and FCoE VLANs. All of the Ethernet traffic on the overlapping VLANs drops. Which action resolves the issue?

• A. Modify the VLAN assignment to vNICs.
• B. Change the PIN groups on the vHBAs.
• C. Modify the FCoE VLAN.
• D. Set the FCoE VLAN as the native VLAN on server uplinks.

Answer: A

NEW QUESTION 16
A server administrator attempts to change the Cisco IMC KVM certificate to one signed by a private CA, but the certificate is not being accepted. What can cause this process to fail?

• A. using a certificate with a password-protected private key
• B. RSA encryption being used in the generation of the certificate.
• C. AES encryption being used in the generation of the certificate.
• D. public IP addres of the Cisco IMC not being included in the SAN.

Answer: A

NEW QUESTION 17
An engineer is troubleshooting a fabric discovery failure. Which two requirements must an engineer verify about switch connectivity to solve the problem? (Choose two.)

• A. A Cisco APIC must be attached to a spine node only.
• B. A Cisco APIC must be attached to leaf nodes.
• C. Spine nodes must connect to other spine nodes.
• D. A Cisco APIC must be dual-attached to two separate spine nodes.
• E. Leaf nodes must connect to spine nodes only.

Answer: BE

NEW QUESTION 18

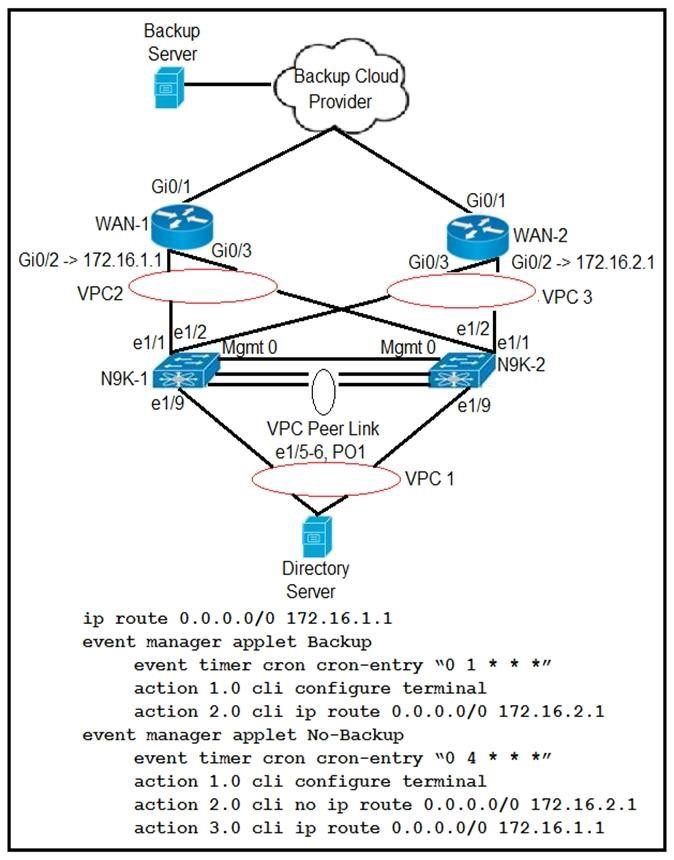

Refer to the exhibit. Partial configuration from N9K-1 and N9K-2 is included. The client has two WANs connected. WAN-1 is for normal business-day activities.
WAN-2 is for server backups during nonworking hours of 1:00 a.m. to 5:00 a.m. daily.
The client says that at the scheduled time for backup, the data center server failed to use the WAN-2 link to back up the servers to the cloud backup system. What is the solution to this problem?

• A. The event timer must be written in epoch time format.
• B. The Cisco Nexus switch must be configured with one applet because a configuration with two applets will fail.
• C. The Cron entry must be configured without double quotes.
• D. The applet called “Backup” must include an action to remove the current static route.

Answer: D

NEW QUESTION 19
A Fibre Channel interface on a Cisco Nexus 5000 Series Switch receives bit errors, and the switch disables the interface. A temporary workaround must be implemented before the root cause is identified. Which action does an engineer take to prevent this issue from reoccurring?

• A. Verify that the SFPs are supported.
• B. Change the SFP to operate at 4 Gbps instead of 2 Gbps.
• C. Run the shutdown and then no shutdown command on the interface.
• D. Run the switchport ignore bit-errors command on the interface.

Answer: D

NEW QUESTION 20

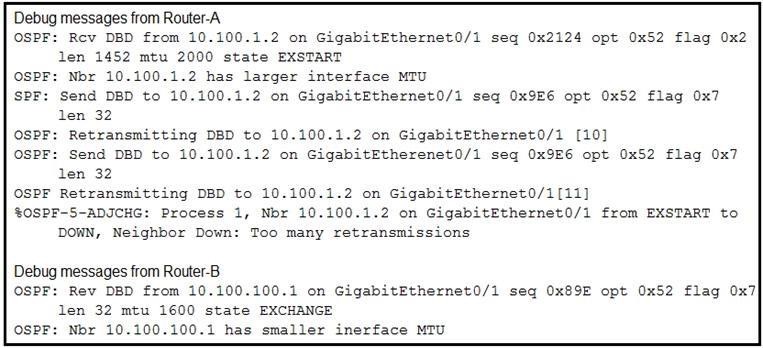

Refer to the exhibit. An OSPF adjacency between Router-A and Router-B cannot reach the FULL state. Which action resolves the issue?

• A. Adjust the MTU on Router-A to 1600.
• B. Disable the check of the MTU value.
• C. Set the OSPF media type to point-to-point.
• D. Adjust the MTU on Router-B to 1604.

Answer: B

NEW QUESTION 21

Refer to the exhibit. After the configuration is performed, guestshell continues to use 2%CPU. Which action resolves the issue?

• A. Resync the database
• B. Recreate the guestshell
• C. Reboot the guestshell
• D. Reboot the switch

Answer: C

NEW QUESTION 22
DRAG DROP
Drag and drop the commands from the left onto the correct categories on the right.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

NEW QUESTION 23
An engineer is troubleshooting a custom AV pair that was created by a client on an external authentication server to map a read-only role for a specific security domain. Which AV pair solves the problem?

• A. shell:domains=Security_Domain_1//Read_Role_1|Read_Role_2
• B. shell:domains=Security_Domain_1/Write_Role_1|Read_Role_2
• C. shell=Security_Domain_1/Read_Role_1|Read_Role_2
• D. shell:domains=Security_Domain_1/Read_Role_1|Read_Role_2

Answer: A

NEW QUESTION 24
Refer to the exhibit. After a failover occurs, which two actions must be performed on Switch-B to manually preempt the operational primary role back to Switch-A? (Choose two.) A. Configure the local vPC role priority to have a lower value than Switch-A.

• A. Configure the local vPC role priority to have a higher value than Switch-A.
• B. Disable and then re-enable the vPC peer-keepalive link.
• C. Configure the local vPC role priority to have the same value as Switch-A.
• D. Disable and then re-enable the vPC peer link.

Answer: BE

NEW QUESTION 25
You have an ACI environment with three APICs, two spine switches, and four-leaf switches. You wipe and reboot all APICs first then leaf and spine switches one-by-one and successfully go through the Initial Setuo dialogue on the APIC 1 CIMC KVM console. When you log in to the APIC1 WebGUI, you notice that you do not see any directly connected leaf switches being discovered under Fabric > Inventory > Fabric Membership. What is the cause of the issue?

• A. The leaf nodes were not erased properly, which caused a fabric parameters mismatch with the APIC1.
• B. Rebooting the APICs and the leaf and spine switches after wiping them is not required.
• C. You forgot to enter the TEP Pool value during the Initial Setup dialogue on APIC1.
• D. The same Fabric Name value should be used before after wiping all devices.

Answer: C
