Avant-garde 300-815 Exam Dumps For Implementing Cisco Advanced Call Control And Mobility Services (CLACCM) Certification

NEW QUESTION 1
Where on Cisco Unified Communications Manager do you configure the standard local route group for a group of devices?

• A. System > Location Info
• B. Call Routing > Route/Hunt > Local Route Group Names
• C. System > Device Pool
• D. Call Routing > Emergency Location > Emergency Location (ELIN) Groups

Answer: B

NEW QUESTION 2
Configure Call Queuing in Cisco Unified Communications Manager. Where do you set the maximum number of callers in the queue?

• A. in the telephony service configuration
• B. in the queuing configuration
• C. in Cisco Unified CM Enterprise Parameters
• D. in Cisco Unified CM Service Parameters

Answer: B

NEW QUESTION 3
Refer to the exhibit. An engineer configures Cisco Unified Border Element to connect the enterprise VoIP network with a SIP telephony provider. Calls are not working in either direction. What must be configured in the dial peer 1 to fix the issue?

• A. address 555 ……..
• B. codec g729
• C. session-protocol sipv2
• D. incoming called number 555…….

Answer: D

NEW QUESTION 4
Which configuration element of a hunt group allows for changing Calling Party Transformations settings?

• A. line group
• B. hunt pilot
• C. route group
• D. hunt list

Answer: B

NEW QUESTION 5
A user reports when they press the services key they do not receive a user ID and password prompt to assign the phone extension. Which action resolves the issue?

• A. Create the default device profiles for all phone models that are used.
• B. Subscribe the phone to the Cisco Extension Mobility service.
• C. Create the end user and associate it to the device profile.
• D. Assign the extension as a mobile extension.

Answer: B

NEW QUESTION 6
Cisco SIP IP telephony is implemented on two floors of your company. Afterward, users report intermittent voice issues in calls established between floors. All calls are established, and sometimes they work well, but sometimes there is oneway audio or no audio. You determine that there is a firewall between the floors, and the administrator reports that it is allowing SIP signaling and UDP ports from 20000 to 22000 bidirectionally. What are two possible solutions? (Choose two.)

• A. Go to the SIP profile assigned to these IP phones in Cisco Unified CM and change the range of media ports to 16384-32767
• B. Ask the firewall administrator to change the ports to TCP.
• C. Ask the firewall administrator to change the range of UDP ports to 16384-32767.
• D. Go to the SIP profile assigned to these IP phones in Cisco Unified CM and change the range of media ports to 20000-22000.
• E. Go to System Parameters in Cisco Unified Communications Manager and change the range of media ports to 20000-22000.

Answer: AC

NEW QUESTION 7
Which description of RTP timestamps or sequence numbers is true?

• A. The sequence number is used to detect losses.
• B. Timestamps increase by the time “carrying” by a packet.
• C. Sequence numbers increase by four for each RTP packet transmitted.
• D. The timestamp is used to place the incoming audio and video packets in the correct timing order (playout delay compensation).

Answer: D

NEW QUESTION 8
Which call pickup feature allows users to pick up incoming calls in a group that is associated with their own group?

• A. Other Group Pickup
• B. BLF Call Pickup
• C. Group Call Pickup
• D. Directed Call Pickup

Answer: A

NEW QUESTION 9
Which configuration must an administrator perform to display Translation Pattern operations in Cisco Unified Communications Manager SDL traces?

• A. Enable the Detailed Call Analysis option under Enterprise Parameters for Unified CM.
• B. Set up the Digit Analysis Complexity in Service Parameters for Cisco Unified CM to TranslationAndAlternatePatternAnalysis.
• C. Check the Translation Patterns Analysis check box in Micro Traces on the Cisco Unified CM Serviceability page.
• D. By default, the Translation Patterns operations are printed in SDL traces, so no additional configuration is necessary.

Answer: A

NEW QUESTION 10

Refer to the exhibit. An administrator is troubleshooting a situation where a call placed from a phone registered to Cisco Unified Communications Manager does not complete. The administrator wants to use the Dialed Number Analyzer on Cisco Unified CM to check which translation pattern the call is matching. However, when logging in to Cisco Unified Serviceability there is no option for Dialed Number Analyzer under the tool menu. Which two steps must be performed to resolve this issue? (Choose two.)

• A. Restart the subscriber
• B. Activate the Cisco Extended Functions service.
• C. Activate the Cisco CallManager service.
• D. Activate the Cisco Dialed Number Analyzer service.
• E. Activate the Cisco Dialed Number Analyzer Server service.

Answer: DE

NEW QUESTION 11
Which section under the Real-Time Monitoring Tool allows for reviewing the call flow and signaling for a SIP call in real time?

• A. Analysis Manager > Inventory > Trace File Repositories
• B. System > Tools > Trace and Log Central
• C. Voice/Video > Session Trace Log View > Real Time Data
• D. Voice/Video > Session Trace Log View > Open From Local Disk

Answer: C

NEW QUESTION 12

Refer to the exhibit. Users report that outbound PSTN calls from phones registered to Cisco Unified Communications Manager are not completing. The local service provider in North America has a requirement to receive calls in 10-digit format. The Cisco Unified CM sends the calls to the Cisco Unified Border Element router in a globalized E.164 format. There is an outbound dial peer on Cisco Unified Border Element configured to send the calls to the provider. The dial peer has a voice translation profile applied in the correct direction but an incorrect voice translation rule applied, which is shown in the exhibit. Which rule modified DNIS in the format that the provider is expecting?

• A. rule 1 /^/+([^1].*)/ /0111/
• B. rule 1/^+1([2-9]..[2-9]……$)/ /1/
• C. rule 1 /^([2-9]..[2-9]……$)/ /1/
• D. rule 1 /^+1([2-9]..[2-9]……$)/ //

Answer: B

NEW QUESTION 13
Which two configuration parameters are prerequisites to set Native Call Queuing on Cisco Unified Communications Manager? (Choose two.)

• A. Cisco IP Voice Media Streaming Service must be activated on at least one node in the cluster.
• B. A unicast music on hold audio source must be configured.
• C. Cisco RIS data collector service must be running on the same server as the Cisco CallManager service.
• D. The maximum number of callers allowed in queue must be 10.
• E. The phone button template must have the Queue Status Softkey configured.

Answer: AC

NEW QUESTION 14
When you troubleshoot H.323 call setup, which message informs you that the called party is being notified about the call?

• A. ALERTING
• B. PROCEEDING
• C. CONNECT
• D. RINGING

Answer: C

NEW QUESTION 15
A network engineer designs a new dial plan and wants to block a certain range of numbers (8135100 through 8135105). What is the most specific route pattern that can be configured to block only the numbers in this range?

• A. 813510[012345]
• B. 813510[12345]
• C. 813510[^0-5]
• D. 81XXXXX

Answer: A

NEW QUESTION 16
What is first preference condition matched in a SIP-enabled incoming dial peer?

• A. incoming uri
• B. target carrier-id
• C. answer-address
• D. incoming called-number

Answer: A

NEW QUESTION 17
What is a component of Cisco Unified Mobility?

• A. Unified IVR
• B. Mobile Connect
• C. Smart Client Support
• D. Single Number Connect

Answer: B

NEW QUESTION 18
You see the voice register pool 1 command in your Cisco Unified Communications Manager Express configuration. Which configuration is occurring in this section?

• A. configuration for a single SIP phone
• B. configuration items common for all SIP phones
• C. configuration for a pool of SIP phones (similar to device pool on Cisco Unified Communications Manager)
• D. configuration for SIP registrar service

Answer: C

NEW QUESTION 19
In Cisco Unified Communications Manager globalized call routing is implemented and must confirm that it is correctly implemented without making a call. Which tool do you use for verification?

• A. Dialed Number Analyzer
• B. Real-Time Monitoring Tool
• C. SDI trace
• D. SDL trace

Answer: A

NEW QUESTION 20

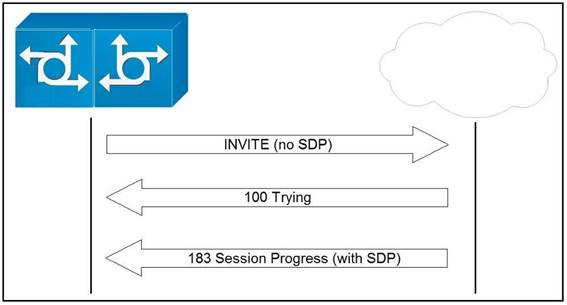

Refer to the exhibit. An administrator is troubleshooting why users are not hearing audio when dialing long distance numbers across their Cisco Unified Border Element. The customer’s carrier has a requirement that dialing long distance requires an access code to be entered. Looking at the exhibit, what two actions can be taken to correct signaling? (Choose two.)

• A. Enanle PRACK.
• B. Enable Early Offer on the Cisco Unified Border Element.
• C. Enable the supplementary-service media-renegotiate command.
• D. Enable Media Flow Around
• E. Enable Mid-Call Signaling Consumption.

Answer: AB

NEW QUESTION 21
How does an engineer globalize routing for ingress calls coming from the PSTN to internal DNs?

• A. At the PSTN gateway, put the calling number in PSTN format and the called number in DN format.
• B. At Cisco Unified CM, put the calling number in E.164 format and the called number in PSTN format.
• C. At the PSTN gateway, put the calling number in E.164 format and the called number in localized (DN) format.
• D. At Cisco Unified Communications Manager, put the calling number in E.164 format and the called number in E.164 format.

Answer: B

NEW QUESTION 22
What is the relationship between partition, time schedule, and time period in Time-of-Day routing in Cisco Unified Communications Manager?

• A. A partition can have multiple time schedules assigne
• B. A time schedule contains one or more time periods.
• C. A partition can have one time schedule assigne
• D. A time schedule contains one or more time periods.
• E. A partition can have multiple time schedules assigne
• F. A time schedule contains only one time period.
• G. A partition can have one time schedule assigne
• H. A time schedule contains only one time period.

Answer: A

NEW QUESTION 23
End users at a new site report being unable to hear the remote party when calling or being called by users at headquarters. Calls to and from the PSTN work as expected. To investigate the SIP signaling to troubleshoot the problem, which field can provide a hint for troubleshooting?

• A. Contact: header of the 200 OK response
• B. Allow: header if the 200 OK response
• C. o= line of SDP content
• D. c= line of SDP content

Answer: C

NEW QUESTION 24

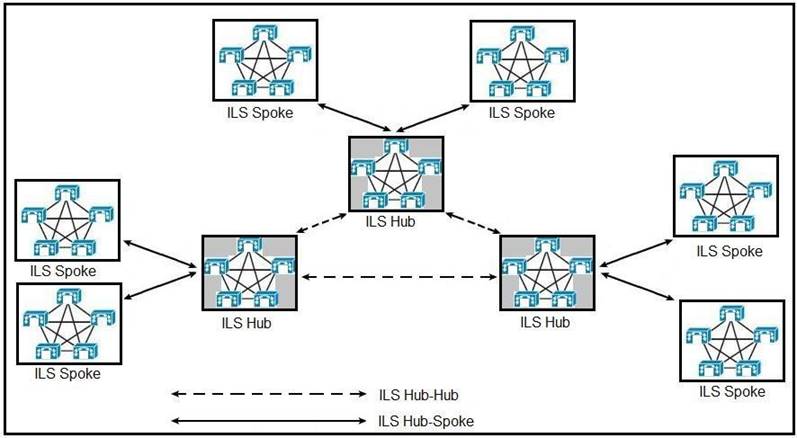

Refer to the exhibit. How many maximum hops can an ILS updarte traverse?

• A. 3
• B. 6
• C. 9
• D. 12

Answer: A

NEW QUESTION 25

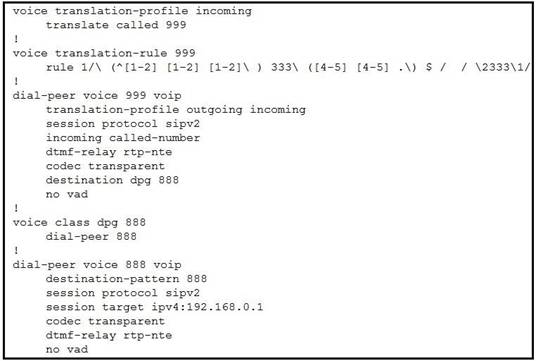

Refer to the exhibit. Calls incoming from the provider are not working through newly set up Cisco Unified Border Element. Provider engineers get the 404 Not Found SIP message. Incoming calls are coming from the provider with called number “222333444” and Cisco Unified Communications Manager is expecting the called number to be delivered as “444333222”. The administrator already verified that the IP address of the Cisco Unified CM is set up correctly and there are no dial peers configured other than those shown in the exhibit. Which action must the administrator take to fix the issue?

• A. Change the destination-pattern on the outgoing dial peer to match “444333222”.
• B. Set up translation-profile on the incoming dial peer to match incoming traffic.
• C. Create specific matching for “222333444” on the incoming dial peer.
• D. Fix the voice translation-rule to match specifically number “222333444” and change it to “444333222”.

Answer: B

NEW QUESTION 26
......
