NEW QUESTION 1
A router RP is configured to perform MPLS LDP graceful restart.
Which three steps are included when the RP sends an LDP initialization message to a neighbor to establish an LDP session? (Choose three.)

• A. Learn from Neighbor (N) flag, set to 1
• B. Recovery Time field
• C. Type-9 LSA
• D. Reconnect Timeout field
• E. Graceful restart capability in OPEN message
• F. Learn from Network (L) flag, set to 1

Answer: BDF

NEW QUESTION 2
A customer of an ISP requests support to setup a BGP routing policy. Which BGP attribute should be configured to choose specific BGP speakers as preferred points for the customer AS?

• A. lowest multi-exit discriminator
• B. highest local preference outbound
• C. lowest local preference inbound
• D. highest local preference inbound

Answer: B

NEW QUESTION 3
Refer to the exhibit. If the NetFlow configuration is updated to version 9, which additional piece of information can be reported?

• A. IPv4 flow information
• B. BGP AS information
• C. IPv6 flow information
• D. flow sequence numbers

Answer: C

NEW QUESTION 4

Refer to the exhibit. If router A is the RP, which PIM mode can you configure so that devices will send multicast traffic toward the RP?

• A. PIM-SM
• B. BIDIR-PIM
• C. PIM-SSM
• D. PIM-DM

Answer: A

NEW QUESTION 5

Refer to the exhibit. Router 1 was experiencing a DDoS attack that was traced to interface gigabitethernet0/1. Which statement about this configuration is true?

• A. Router 1 accepts all traffic that ingresses and egresses interface gigabitethernet0/1.
• B. Router 1 drops all traffic that ingresses interface gigabitethernet0/1 that has a FIB entry that exits a different interface.
• C. Router 1 accepts source addresses that have a match in the FIB that indicates it is reachable through a real interface.
• D. Router 1 accepts source addresses on interface gigabitethernet0/1 that are private addresses.

Answer: C

NEW QUESTION 6
How can shared services in an MPLS Layer 3 VPN provide Internet access to the Customers of a central service provider?

• A. Static routes on CE routers allow route leakage from a PE global routing table.
• B. The CE router can establish a BGP peering to a PE router and use the PE device to reach the Internet.
• C. The customer VRF uses route targets to import and export routes to and from a shared services VRF.
• D. Route distinguishers are used to identify the routes that CEs can use to reach the Internet.

Answer: C

NEW QUESTION 7
Which three OSPF parameters must match before two devices can establish an OSPF adjacency? (Choose three.)

• A. IP address
• B. subnet mask
• C. interface cost
• D. process ID
• E. area number
• F. hello timer setting

Answer: BEF

NEW QUESTION 8

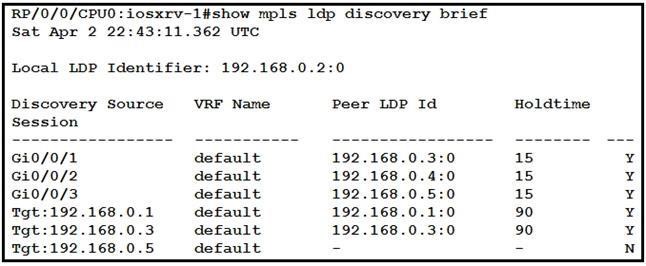

Refer to the exhibit. With which router does IOSXRV-1 have LDP session protection capability enabled but session hold up is not active?

• A. 192.168.0.4
• B. 192.168.0.5
• C. 192.168.0.1
• D. 192.168.0.3

Answer: B

NEW QUESTION 9

Refer to the exhibit. Which configuration prevents the OSPF neighbor from establishing?

• A. default-metric
• B. duplex
• C. network statement
• D. mtu

Answer: D

NEW QUESTION 10

Refer to the exhibit. Which purpose of implementing NSF with this configuration is true?

• A. The router uses NSF to handle RP switchover while allowing neighbor relationships to remain up.
• B. The router uses NSF to reduce neighbor-relationship downtime during RP switchover.
• C. The router uses NSF to load balance traffic on a routed EtherChannel.
• D. The router uses NSF to load balance traffic between two links, with the primary link alternating every 90 seconds.

Answer: A

NEW QUESTION 11
Refer to the exhibit. R1 is connected to two service providers and is under a DDoS attack.
Which statement about this design is true if URPF in strict mode is configured on both interfaces?

• A. R1 drops all traffic that ingresses either interface that has a FIB entry that exits a different interface.
• B. R1 drops destination addresses that are routed to a null interface on the router.
• C. R1 permits asymmetric routing as long as the AS-PATH attribute entry matches the connected AS.
• D. R1 accepts source addresses on interface gigabitethernet0/1 that are private addresses.

Answer: A

NEW QUESTION 12
What is the difference between SNMP and model- driven telemetry?

• A. SNMP uses the YANG data modeling language.
• B. Telemetry uses traps and inform messages to deliver data to a network administrator on a polling basis.
• C. Telemetry allows for modeled network data to be pushed to the network administrator on an as-needed basis.
• D. SNMP pushes network data to the network administrator whenever it is queried.

Answer: C

NEW QUESTION 13
Refer to the exhibit. This configuration is being applied on an IOS XR router.
Which statement about this configuration is true?

• A. It is used to enable gRPC.
• B. It is used to create a streaming subscription with a 600-second interval.
• C. It is used to set up configuration to poll network data.
• D. It is used to create a streaming subscription with a 60-Second interval.

Answer: D

NEW QUESTION 14
Refer to the exhibit. Which statement describes this configuration?

• A. Router 1 has a new data store to collect SNMP information, but configuration must still be done at the CLI only.
• B. Router 1 can be remotely managed by the CLI using Telnet.
• C. Router 1 has its running configuration locked so changes can be made only when the administrator issues a kill session.
• D. Router 1 has a temporary data store where a copy of the running configuration can be manipulated and verified before committing the configuration.

Answer: D

NEW QUESTION 15

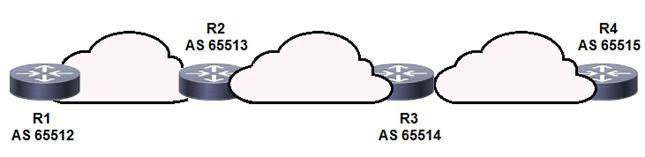

Refer to the exhibit. BGPsec is implemented on R1, R2, R3, and R4. BGP peering is established between neighboring autonomous systems. Which statement about implementation is true?

• A. BGP updates from the iBGP peers are appended with a community of local-as.
• B. BGP updates from the all BGP peers are appended with a community of no-export.
• C. BGP updates from the eBGP peers are appended with an additional AS path value that is statically set by the domain administrator.
• D. BGP updates from the eBGP peers are appended with a BGPsec attribute sequence that includes a public key hash and digital signature.

Answer: D

NEW QUESTION 16

Refer to the exhibit. Which statement about the status of the neighbor relationship between R1 and R2 is true?

• A. The neighbor relationship is down because the two routers are configured with different area types.
• B. The neighbor relationship is down because the two routers are in the same subnet.
• C. The neighbor relationship is up because R2 is level 1 and Ievel 2 router.
• D. The neighbor relationship is down because R2 is operating as a Level 1 router and the two routers are in different areas.

Answer: A

NEW QUESTION 17
After you analyze your network environment, you decide to implement a full separation model for Internet access and MPLS L3VPN services. For which reason do you make this decision?

• A. It enables EGP and IGP to operate independently.
• B. It enables you to choose whether to separate or centralize each individual service.
• C. It is easier to manage a system in which services are mixed.
• D. It requires only one edge router.

Answer: A

NEW QUESTION 18
Which configuration mode do you use to apply the mpls ldp graceful-restart command in IOS XE Software?

• A. MPLS LDP neighbor
• B. interface
• C. MPLS
• D. global

Answer: D

NEW QUESTION 19

Refer to the exhibit. An engineer is preparing to implement data plane security configuration. Which statement about this configuration is true?

• A. Router 1 and Router 2 advertise the route to 192.0.2.0 to all BGP peers.
• B. All traffic to 192.168.1.0/24 is dropped.
• C. All traffic is dropped.
• D. Router 1 drops all traffic with a local-preference set to 150.

Answer: A

NEW QUESTION 20

Refer to the exhibit. A network operator working for service provider with an employee id: 1234:56:789 applied this configuration to a router. Which additional step should the engineer use to enable LDP?

• A. Enable MPLS LDP on the interface.
• B. Disable Cisco Express Forwarding globally.
• C. Delete the static router ID.
• D. Configure the both keyword to enable LDP globally.

Answer: A

NEW QUESTION 21
Which component is similar to an EVPN instance?

• A. router distinguisher
• B. MPLS label
• C. IGP router ID
• D. VRF

Answer: D
