Actual AZ-220 Dumps 2021

NEW QUESTION 1

You have 100 devices that connect to an Azure IoT hub.
You plan to use Azure functions to process all the telemetry messages from the devices before storing the messages.
You need to configure the functions binding for the IoT hub.
Which two configuration details should you use to configure the binding? Each Answer presents part of the solution.
NOTE: Each correct selection is worth one point.

• A. the name of the resource group that contains the IoT hub
• B. the IoT hub's connection string shared access key that has Service connect permissions
• C. the connection string of the Azure Event Hub-compatible endpoint from the IoT Hub built-in endpoints
• D. the Azure Event-Hub compatible name

Answer: CD

Explanation:
EventHubName: Functions 2.x and higher. The name of the event hub. When the event hub name is also present in the connection string, that value overrides this property at runtime.
Connection: The name of an app setting that contains the connection string to the event hub's namespace. Copy this connection string by clicking the Connection Information button for the namespace, not the event hub itself. This connection string must have send permissions to send the message to the event stream.
Reference:
https://docs.microsoft.com/en-us/azure/azure-functions/functions-bindings-event-iot-output

NEW QUESTION 2

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this question, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have devices that connect to an Azure IoT hub. Each device has a fixed GPS location that includes latitude and longitude.
You discover that a device entry in the identity registry of the IoT hub is missing the GPS location.
You need to configure the GPS location for the device entry. The solution must prevent the changes from being propagated to the physical device.
Solution: You add tags to the device twin. Does the solution meet the goal?

• A. Yes
• B. No

Answer: B

Explanation:
Instead add the desired properties to the device twin.
Note: Device Twins are used to synchronize state between an IoT solution's cloud service and its devices. Each device's twin exposes a set of desired properties and reported properties. The cloud service populates the
desired properties with values it wishes to send to the device. When a device connects it requests and/or subscribes for its desired properties and acts on them.
Reference:
https://azure.microsoft.com/sv-se/blog/deep-dive-into-azure-iot-hub-notifications-and-device-twin/

NEW QUESTION 3

You have 10 IoT devices that connect to an Azure IoT hub named Hub1.
From Azure Cloud Shell, you run az iot hub monitor-events --hub-name Hub1 and receive the following error message: "az iot hub: 'monitor-events' is not in the 'az iot hub' command group. See 'az iot hub
--help'."
You need to ensure that you can run the command successfully. What should you run first?

• A. az iot hub monitor-feedback --hub-name Hub1
• B. az iot hub generate-sas-token --hub-name Hub1
• C. az iot hub configuration list --hub-name Hub1
• D. az extension add -name azure-cli-iot-ext

Answer: D

Explanation:
Execute az extension add --name azure-cli-iot-ext once and try again.
In order to read the telemetry from your hub by CLI, you have to enable IoT Extension with the following commands:
Add: az extension add --name azure-cli-iot-ext Reference:
https://github.com/MicrosoftDocs/azure-docs/issues/20843

NEW QUESTION 4

You have an Azure IoT Central application that has a custom device template. You need to configure the device template to support the following activities:
Return the reported power consumption.
Configure the desired fan speed.
Run the device reset routine.
Read the fan serial number.
Which option should you use for each activity? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Box 1: Measurement
Telemetry/measurement is a stream of values sent from the device, typically from a sensor. For example, a sensor might report the ambient temperature.
Box 2: Property
The template can provide a writeable fan speed property
Properties represent point-in-time values. For example, a device can use a property to report the target temperature it's trying to reach. You can set writeable properties from IoT Central.
Box 3: Settings
Box 4: Command
You can call device commands from IoT Central. Commands optionally pass parameters to the device and receive a response from the device. For example, you can call a command to reboot a device in 10 seconds.
Reference:
https://docs.microsoft.com/en-us/azure/iot-central/core/howto-set-up-template

NEW QUESTION 5

You have 100 devices that connect to an Azure IoT hub.
You need to be notified about failed local logins to a subnet of the devices.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Step 1: Enable Azure Security Center for IoT
Security alerts, such as failed local IoT hub logins, are stored in AzureSecurityOfThings.SecurityAlert table in the Log Analytics workspace configured for the Azure Security Center for IoT solution.
Step 2: Select a device security group Update a device security group..
Step 3: Create a custom alert rule by creating a custom alert rule Reference:
https://docs.microsoft.com/bs-latn-ba/azure/asc-for-iot/how-to-security-data-access https://docs.microsoft.com/en-us/rest/api/securitycenter/devicesecuritygroups/createorupdate

NEW QUESTION 6

You have an Azure IoT hub that uses a Device Provisioning Service instance.
You create a new individual device enrollment that uses symmetric key attestation.
Which detail from the enrollment is required to auto provision the device by using the Device Provisioning Service?

• A. the registration ID of the enrollment
• B. the primary key of the enrollment
• C. the device identity of the IoT hub
• D. the hostname of the IoT hub

Answer: C

Explanation:
An enrollment is the record of devices or groups of devices that may register through auto-provisioning. The enrollment record contains information about the device or group of devices, including:
the attestation mechanism used by the device
the optional initial desired configuration desired IoT hub the desired device ID
Note: Azure IoT auto-provisioning can be broken into three phases:
*1. Service configuration - a one-time configuration of the Azure IoT Hub and IoT Hub Device Provisioning Service instances, establishing them and creating linkage between them.
*2. Device enrollment - the process of making the Device Provisioning Service instance aware of the devices that will attempt to register in the future. Enrollment is accomplished by configuring device identity information in the provisioning service, as either an "individual enrollment" for a single device, or a "group enrollment" for multiple devices.
*3. Device registration and configuration Reference:
https://docs.microsoft.com/en-us/azure/iot-dps/concepts-service#enrollment

NEW QUESTION 7

You have an instance of Azure Time Series Insights and an Azure IoT hub that receives streaming telemetry from IoT devices.
You need to configure Time Series Insights to receive telemetry from the devices.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Step 1: Create a dedicated consumer group.. Add a consumer group to your IoT hub.
Applications use consumer groups to pull data from Azure IoT Hub. To reliably read data from your IoT hub, provide a dedicated consumer group that's used only by this Time Series Insights environment.
Step 2: Add a new Time Series Insights event source. Add a new event source
Sign in to the Azure portal.
In the left menu, select All resources. Select your Time Series Insights environment.
Under Settings, select Event Sources, and then select Add.
In the New event source pane, for Event source name, enter a name that's unique to this Time Series Insights environment. For example, enter event-stream.
Step 3: Configure the Time Series event source to connect to an existing IOT hub Step 4: For Source, select IoT Hub.
Step 5: Select a value for Import option:
If you already have an IoT hub in one of your subscriptions, select Use IoT Hub from available subscriptions. This option is the easiest approach.
Reference:
https://docs.microsoft.com/en-us/azure/time-series-insights/time-series-insights-how-to-add-an-event-source-iot

NEW QUESTION 8

You plan to deploy Azure Time Series Insights.
What should you create on iothub1 before you deploy Time Series Insights?

• A. a new message route
• B. a new consumer group
• C. a new shared access policy
• D. an IP filter rule

Answer: B

Explanation:
Create a dedicated consumer group in the IoT hub for the Time Series Insights environment to consume from. Each Time Series Insights event source must have its own dedicated consumer group that isn't shared with any other consumer. If multiple readers consume events from the same consumer group, all readers are likely to exhibit failures.
Reference:
https://docs.microsoft.com/en-us/azure/time-series-insights/time-series-insights-how-to-add-an-event-source- iothub

NEW QUESTION 9

You develop a custom Azure IoT Edge module named temperature-module.
You publish temperature-module to a private container registry named mycr.azurecr.io
You need to build a deployment manifest for the IoT Edge device that will run temperature-module. Which three container images should you define in the manifest? Each correct answer presents part of the
solution.
NOTE: Each correct selection is worth one point.

• A. mcr.microsoft.com/azureiotedge-simulated-temperature-sensor:1.0
• B. mcr.microsoft.com/azureiotedge-agent:1.0
• C. mcr.microsoft.com/iotedgedev:2.0
• D. mycr.azurecr.io/temperature-module:latest
• E. mcr.microsoft.com/azureiotedge-hub:1.0

Answer: BDE

Explanation:
Each IoT Edge device runs at least two modules: $edgeAgent and $edgeHub, which are part of the IoT Edge runtime. IoT Edge device can run multiple additional modules for any number of processes. Use a deployment manifest to tell your device which modules to install and how to configure them to work together.
Reference:
https://docs.microsoft.com/en-us/azure/iot-edge/module-composition

NEW QUESTION 10

You need to enable telemetry message tracing through the entire IoT solution. What should you do?

• A. Monitor device lifecycle events.
• B. Upload IoT device logs by using the File upload feature.
• C. Enable the DeviceTelemetry diagnostic log and stream the log data to an Azure event hub.
• D. Implement distributed tracing.

Answer: D

Explanation:
IoT Hub is one of the first Azure services to support distributed tracing. As more Azure services support distributed tracing, you'll be able trace IoT messages throughout the Azure services involved in your solution.
Note:
Enabling distributed tracing for IoT Hub gives you the ability to:
Precisely monitor the flow of each message through IoT Hub using trace context. This trace context includes correlation IDs that allow you to correlate events from one component with events from another component. It can be applied for a subset or all IoT device messages using device twin.
Automatically log the trace context to Azure Monitor diagnostic logs.
Measure and understand message flow and latency from devices to IoT Hub and routing endpoints. Start considering how you want to implement distributed tracing for the non-Azure services in your IoT solution.
Reference:
https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-distributed-tracing

NEW QUESTION 11

You have an Azure IoT Edge device.
You need to modify the credentials used to access the container registry. What should you modify?

• A. the @edgeHub module twin
• B. the IoT Edge module
• C. the $edgeAgent module twin
• D. the Azure IoT Hub device twin

Answer: C

Explanation:
The module twin for the IoT Edge agent is called $edgeAgent and coordinates the communications between the IoT Edge agent running on a device and IoT Hub. The desired properties are set when applying a deployment manifest on a specific device as part of a single-device or at-scale deployment.
These properties include: runtime.settings.registryCredentials.{registryId}.username runtime.settings.registryCredentials.registryId}.password
Reference:
https://docs.microsoft.com/en-us/azure/iot-edge/module-edgeagent-edgehub

NEW QUESTION 12

You are troubleshooting an Azure IoT hub.
You discover that some telemetry messages are dropped before they reach downstream processing. You suspect that IoT Hub throttling is the root cause.
Which log in the Diagnostics settings of the IoT hub should you use to capture the throttling error events?

• A. Routes
• B. DeviceTelemetry
• C. Connections
• D. C2DCommands

Answer: B

Explanation:
The device telemetry category tracks errors that occur at the IoT hub and are related to the telemetry pipeline. This category includes errors that occur when sending telemetry events (such as throttling) and receiving telemetry events (such as unauthorized reader). This category cannot catch errors caused by code running on the device itself.
Note: The metric d2c.telemetry.ingress.sendThrottle is the number of throttling errors due to device throughput throttles.
Reference:
https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-monitor-resource-health

NEW QUESTION 13

You have 20 devices that connect to an Azure IoT hub.

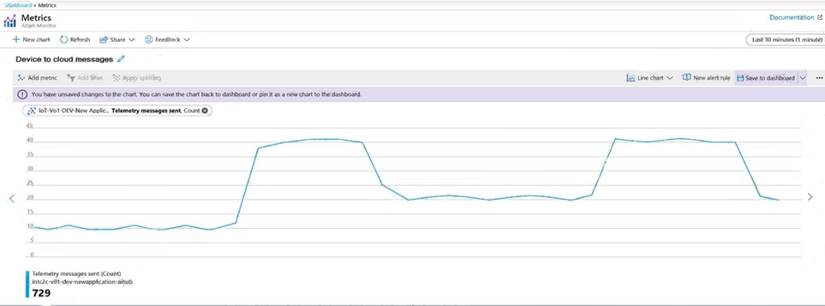

You open Azure Monitor as shown in the exhibit. (Click the Exhibit tab.)

You discover that telemetry is not being received from five IoT devices.
You need to identify the names of the devices that are not generating telemetry and visualize the data. What should you do first?

• A. Add the Number of throttling errors metric and archive the logs to an Azure storage account.
• B. Configure diagnostics for Routes and stream the logs to Azure Event Hubs.
• C. Add the Telemetry messages sent metric and archieve the logs to an Azure Storage account.
• D. Configure diagnostics for Connections and send the logs to Azure Log Analytics.

Answer: D

Explanation:

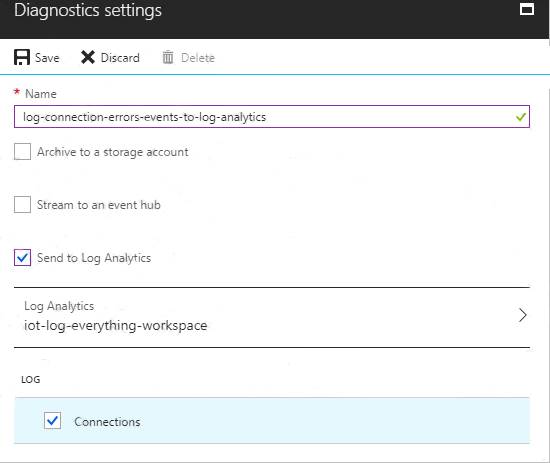

To log device connection events and errors, turn on diagnostics for IoT Hub. We recommend turning on these logs as early as possible, because if diagnostic logs aren't enabled, when device disconnects occur, you won't have any information to troubleshoot the problem with.
Sign in to the Azure portal.
Browse to your IoT hub.
Select Diagnostics settings.
Select Turn on diagnostics.
Enable Connections logs to be collected.
For easier analysis, turn on Send to Log Analytics

Reference:
https://docs.microsoft.com/bs-cyrl-ba/azure/Iot-hub/iot-hub-troubleshoot-connectivity

NEW QUESTION 14

Your company is creating a new camera security system that will use Azure IoT Hub. You plan to use an Azure IoT Edge device that will run Ubuntu Server 18.04.
You need to configure the IoT Edge device.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Step 1: Run the following commands Install the container runtime.
Azure IoT Edge relies on an OCI-compatible container runtime. For production scenarios, we recommended that you use the Moby-based engine provided below. The Moby engine is the only container engine officially supported with Azure IoT Edge. Docker CE/EE container images are compatible with the Moby runtime.
Install the Moby engine.
sudo apt-get install moby-engine
Install the Moby command-line interface (CLI). The CLI is useful for development but optional for production deployments.
sudo apt-get install moby-cli
Install the security daemon. The package is installed at /etc/iotedge/. sudo apt-get install iotedge
Step 2: From Iot Hub,create an IoT Edge device registry entry.
Note: In your IoT Hub in the Azure portal, IoT Edge devices are created and managed separately from IOT devices that are not edge enabled.
Sign in to the Azure portal and navigate to your IoT hub.
In the left pane, select IoT Edge from the menu.
Select Add an IoT Edge device.
Provide a descriptive device ID. Use the default settings to auto-generate authentication keys and connect the new device to your hub.
Select Save.
Retrieve the connection string in the Azure portal
*1. When you're ready to set up your device, you need the connection string that links your physical device with its identity in the IoT hub.
*2. From the IoT Edge page in the portal, click on the device ID from the list of IoT Edge devices.
*3. Copy the value of either Primary Connection String or Secondary Connection String.
Step 3: Add the connection string to..
To manually provision a device, you need to provide it with a device connection string that you can create by registering a new device in your IoT hub.
Open the configuration file.
sudo nano /etc/iotedge/config.yaml
Find the provisioning configurations of the file and uncomment the Manual provisioning configuration section. Update the value of device_connection_string with the connection string from your IoT Edge device.
Save and close the file.
After entering the provisioning information in the configuration file, restart the daemon: sudo systemctl restart iotedge
Reference:
https://docs.microsoft.com/en-us/azure/iot-edge/how-to-install-iot-edge-linux

NEW QUESTION 15

You have an Azure IoT solution that includes several Azure IoT hubs.
A new alerting feature was recently added to the IoT devices. The feature uses a new device twin reported property named alertCondition.
You need to send alerts to an Azure Service Bus queue named MessageAlerts. The alerts must include alertCondition and the name of the IoT hub.
Which two actions should you perform? Each Answer presents part of the solution. NOTE: Each correct selection is worth one point.

• A. Configure File upload for each IoT hu
• B. Configure the device to send a file to an Azure Storage container that contains the device name and status message.
• C. Add the following message enrichments: Name = iotHubNameValue = $twin.tag.location Endpoint = MessageAlert
• D. Create an IoT Hub routing rule that has a data source of Device Twin Change Events and select the endpoint for MessageAlerts.
• E. Add the following message enrichments: Name = iotHubName Value = $iothubnameEndpoint = MessageAlert
• F. Create an IoT Hub routing rule that has a data source of Device Telemetry Messages and select the endpoint for MessageAlerts.

Answer: BD

Explanation:
B: Message enrichments is the ability of the IoT Hub to stamp messages with additional information before the messages are sent to the designated endpoint. One reason to use message enrichments is to include data that can be used to simplify downstream processing. For example, enriching device telemetry messages with
a device twin tag can reduce load on customers to make device twin API calls for this information. D: Applying enrichments
The messages can come from any data source supported by IoT Hub message routing, including the following examples:
-->device twin change notifications -- changes in the device twin device telemetry, such as temperature or pressure
device life-cycle events, such as when the device is created or deleted Reference:
https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-message-enrichments-overview

NEW QUESTION 16
......
