A Review Of Simulation 201 Training

NEW QUESTION 1
Which event is always triggered when a client initially connects to a virtual server configured with an HTTP profile?

• A. HTTP_DATA
• B. CLIENT_DATA
• C. HTTP_REQUEST
• D. CLIENT_ACCEPTED

Answer: D

NEW QUESTION 2
During a high-demand traffic event, the BIG-IP Administrator needs to limit the number of new connections per second allowed to a Virtual Server.
What should the administrator apply to accomplish this task?

• A. An HTTP Compression profile to the Virtual Server
• B. A connection rate limit to the Virtual Server
• C. A connection limit to the Virtual Server
• D. A OneConnect profile to the Virtual Server

Answer: B

NEW QUESTION 3
A BIG-IP Administrator needs to find which modules have been licensed for use on the BIG-IP system. In which section of the Configuration Utility can the BIG-IP Administrator find this information?

• A. System > Services
• B. System > Resource Provisioning
• C. System > Platform
• D. System > Support

Answer: B

NEW QUESTION 4
You have a pool of servers that need to be tested. All of the servers but one should be tested every 10 seconds, but one is slower and should only be tested every 20 seconds. How do you proceed?

• A. It cannot be don
• B. All monitors test every five seconds.
• C. It can be done, but will require assigning monitors to each pool member.
• D. It cannot be don
• E. All of the members of a pool must be tested at the same frequency.
• F. It can be done by assigning one monitor to the pool and a different monitor to the slower pool member.

Answer: D

NEW QUESTION 5
One of the two members of a device group has been decommissioned. The BIG-IP Administrator tries to delete the device group, but is unsuccessful.
Prior to removing the device group, which action should be performed?

• A. Disable the device group
• B. Remove all members from the device group
• C. Remove the decommissioned device from the device group
• D. Make sure all members of the device group are in sync

Answer: B

NEW QUESTION 6
Which IP address will the client address be changed to when SNAT automap is specified within a Virtual Server configuration?

• A. The floating self-IP address on the VLAN where the packet leaves the system.
• B. The floating self-IP address on the VLAN where the packet arrives on the system.
• C. It will alternate between the floating and non floating self-IP address on the VLAN where the packet leaves the system so that port exhaustion is avoided.
• D. It will alternate between the floating and non floating self-IP address on the VLAN where the packet arrives on the system so that port exhaustion is avoided.

Answer: A

NEW QUESTION 7
Refer to the exhibit


The network team creates a new VLAN on the switches. The BIG-IP Administrator needs to create a configuration on the BIG-IP device. The BIG-IP Administrator creates a new VLAN and Self IP, but the servers on the new VLAN are NOT reachable from the BIG-IP device.
Which action should the BIG-IP Administrators to resolve this issue?

• A. Set Port Lockdown of Set IP to Allow All
• B. Change Auto Last Hop to enabled
• C. Assign a physical interface to the new VLAN
• D. Create a Floating Set IP Address

Answer: C

NEW QUESTION 8
Assume a client's traffic is being processed only by a NAT; no SNAT or virtual server processing takes place. Also assume that the NAT definition specifies a NAT address and an origin address while all other settings are left at their defaults. If the origin server were to initiate traffic via the BIG-IP, what changes, if any, would take place when the BIG-IP processes such packets?

• A. The BIG-IP would drop the request since the traffic didn’t arrive destined to the NAT address.
• B. The source address would not change, but the destination address would be changed to the NAT address.
• C. The source address would be changed to the NAT address and destination address would be left unchanged.
• D. The source address would not change, but the destination address would be changed to a self-IP of the BIG-IP.

Answer: C

NEW QUESTION 9
The BIG-IP Administrator configures an HTTP monitor with a specific receive string. The status is marked 'down'.
Which tool should the administrator use to identify the problem?

• A. Ping
• B. Health
• C. tcpdump
• D. ifconfig

Answer: C

NEW QUESTION 10
Refer to the exhibit


The network team creates a new VLAN on the switches. The BIG-IP Administrator needs to create a configuration on the BIG-IP device. The BIG-IP Administrator creates a new VLAN and Self IP, but the servers on the new VLAN are NOT reachable from the BIG-IP device.
Which action should the BIG-IP Administrators to resolve this issue?

• A. Set Port Lockdown of Set IP to Allow All
• B. Change Auto Last Hop to enabled
• C. Assign a physical interface to the new VLAN
• D. Create a Floating Set IP Address

Answer: C

NEW QUESTION 11
What is the status of a pool member when manual resume is enabled and a health check first fails and then passes?

• A. Offline (Disabled)
• B. Offline (Enabled)
• C. Available (Disabled)
• D. Available (Enabled)

Answer: A

NEW QUESTION 12
On the VCMP system, a BIG-IP host administrator imports a new ISO image into the host's /shared/images folder. The new ISO images that reside on the vCMP host are available for installation on the guest. How should the BIG-IP Administrator install one image from within the guest?

• A. Install the new software on the host and wait for it to automatically be installed on all guests.
• B. Run the following command on guesttmsh install sys software block-device-image image_name volume < volume_name>
• C. Run the following command on guesttmsh install sys software image image_name volume < volume_name>
• D. Run the following command on hosttmsh install sys software block-device-image image_name volume < volume_name>

Answer: D

NEW QUESTION 13
Which two statements are true about SNATs? (Choose two.)

• A. SNATs are enabled on all VLANs, by default.
• B. SNATs can be configured within a Profile definition.
• C. SNATs can be configured within a Virtual Server definition.
• D. SNAT's are enabled only on the VLAN where origin traffic arrives, by default.

Answer: AC

NEW QUESTION 14
A BIG-IP Administrator wants to add the ASM Module to an HA pair of BIG-IP devices. The BIG-IP Administrator has already installed a new Add-On License on both devices in the HA pair. What should the BIG-IP Administrator do next to use the module?

• A. Provision the new module on both BIG-IP device's
• B. Synchronize both BIG-IP devices
• C. Reboot both BIG-IP devices
• D. Reactivate the Licenses on both BIG IP devices

Answer: A

NEW QUESTION 15
A BIG-IP Administrator upgrades the BIG-IP LTM to a newer software version. After the administrator reboots into the new volume, the Configuration fails to load. Why is the Configuration failing to load?

• A. The license needs to be reactivated before the upgrade.
• B. The upgrade was performed on the standby unit.
• C. A minimum of at least two reboots is required.
• D. Connectivity to the DNS server failed to be established.

Answer: A

NEW QUESTION 16
A site is load balancing to a pool of web servers. Which statement is true concerning BIG IP's ability to verify whether the web servers are functioning properly or not?

• A. Web server monitors can test the content of any page on the server.
• B. Web server monitors always verify the contents of the index.html page.
• C. Web server monitors can test whether the server's address is reachable, but cannot test a page's content.
• D. Web server monitors can test the content of static web pages, but cannot test pages that would require the web server to dynamically build content.

Answer: A

NEW QUESTION 17
A BIG-IP Administrator must determine if a Virtual Address is configured to fail over to the standby member of a device group in which area of the Configuration Utility can this be confirmed?

• A. Device Management > Traffic Groups
• B. Device Management > Devices
• C. Local Traffic > Virtual Servers
• D. Device Management > Overview

Answer: C

NEW QUESTION 18

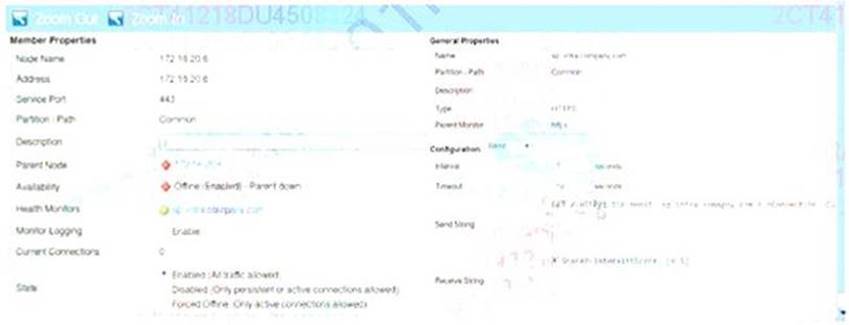

A BIG-IP Administrator notices that one of the servers that runs an application is NOT receiving any traffic. The BIG-IP Administrator examines the configuration status of the application and observes the displayed monitor configuration and affected Pool Member status.

What is the possible cause of this issue?

• A. The Node Health Monitor is NOT responding.
• B. The application is NOT responding with the expected Receive String.
• C. HTTP 1.1 is NOT appropriate for monitoring purposes.
• D. The BIG-IP device is NOT able to reach the Pool.

Answer: A

NEW QUESTION 19
How is MAC masquerading configured?

• A. Specify the desired MAC address for each VLAN for which you want this feature enabled.
• B. Specify the desired MAC address for each selfIP address for which you want this feature enabled.
• C. Specify the desired MAC address for each VLAN on the active system and synchronize the systems.
• D. Specify the desired MAC address for each floating selfIP address for which you want this feature enabled.

Answer: A
