NEW QUESTION 1
Which result occurs when a VSAN is deleted that contains non-trunking ports?

• A. The ports are moved to VSAN 4094.
• B. The ports are moved to VSAN 1.
• C. The ports are removed from the configuration.
• D. The port configurations are cleared.

Answer: A

NEW QUESTION 2
DRAG DROP
Drag and drop the FLOGI parameters from the left onto the descriptions from which they were-derived on the right.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

NEW QUESTION 3
A Cisco MDS Series Switch with the POAP feature boots and does not find the startup configuration. Which location is checked first when the switch enters POAP mode?

• A. USB device that contains the software image files and the switch configuration file
• B. DHCP server to bootstrap the interface IP address, gateway, DNS server, and TFTP IP addresses
• C. TFTP server where the necessary configuration files are downloaded
• D. HTTP server where the URL is used to download the software image

Answer: A

NEW QUESTION 4
A storage network engineer is implementing a port channel for multiple FCIP interfaces with write acceleration in a client’s storage network. Which channel mode must be used?

• A. on
• B. passive
• C. active
• D. force

Answer: C

NEW QUESTION 5
Which command identifies the application and the user that have a Cisco Fabric Services session open?

• A. show cfs application
• B. show zoneset active
• C. show cfs lock
• D. show device-alias database

Answer: A

NEW QUESTION 6
Which two components are required for successful MDS USB POAP (Choose two.)

• A. NTFS formatted USB drive
• B. USB drive in port 1
• C. script named poap_script pl
• D. ENTERPRISE_PKG license
• E. system and kickstart images

Answer: CE

NEW QUESTION 7
A storage network engineer is implementing SAN telemetry for a SAN infrastructure using Cisco DCNM for SAN. Which command is used to check the session status for telemetry operation?

• A. show telemetry pipeline stats
• B. show telemetry transport
• C. show telemetry control stats
• D. show analytics system-load

Answer: B

NEW QUESTION 8
A network engineer must run a core Cisco Nexus 9500 Series Switch as a POAP server for all top-of-rack Cisco Nexus switches. Which two network functions must run to provide the POAP service? (Choose two.)

• A. DNS
• B. PXE
• C. BOOTP
• D. TFTP
• E. DHCP

Answer: DE

NEW QUESTION 9
A storage network engineer must configure a 48-port Cisco MDS switch to reject any login requests to VSAN 10 from unauthorized Fibre Channel devices and switches. All the devices that were already logged in to the switch from this VSAN must be allowed without any manual configuration. Which configuration must be applied?

• A. switch(config)# feature port-security switch(config)# port- security activate vsan 10
• B. switch(config)# feature port- security switch(config)# port-security activate vsan 10 no auto- learn
• C. switch(config)# feature port-security switch(config)# port-security database vsan 10 switch(config-port-security)# any-wwn interface fc1/1 – fc1/48
• D. switch(config)# port-security activate vsan 10

Answer: D

NEW QUESTION 10

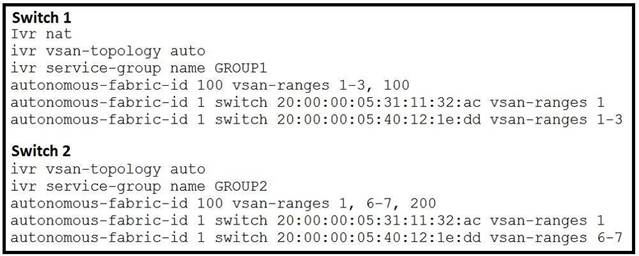

Refer to the exhibit.

What is the result of merging the fabric?

• A. The merged fabric IVR VSAN topology is set to activate.
• B. The merged fabric has NAT enabled.
• C. The merge is invalid.
• D. The merged fabric contains only service group Group1.

Answer: D

NEW QUESTION 11

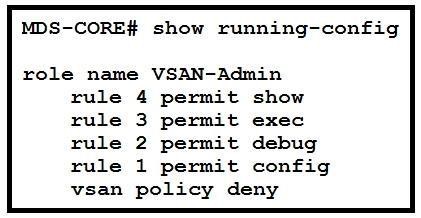

Refer to the exhibit.

A network engineer created a new user that uses the VSAN-Admin role on a Cisco MDS switch so a new colleague can manage the VSANs configured on the switch. Which action is required for the configuration to give permission to the new colleague?

• A. permit vsan 1-1000 must be configured as rule 5.
• B. permit vsan 1-1000 must be configured as rule 1.
• C. permit vsan 1-1000 must be configured under the VSAN policy deny.
• D. permit vsan 1-1000 must be configured under the VSAN policy allow.

Answer: C

NEW QUESTION 12

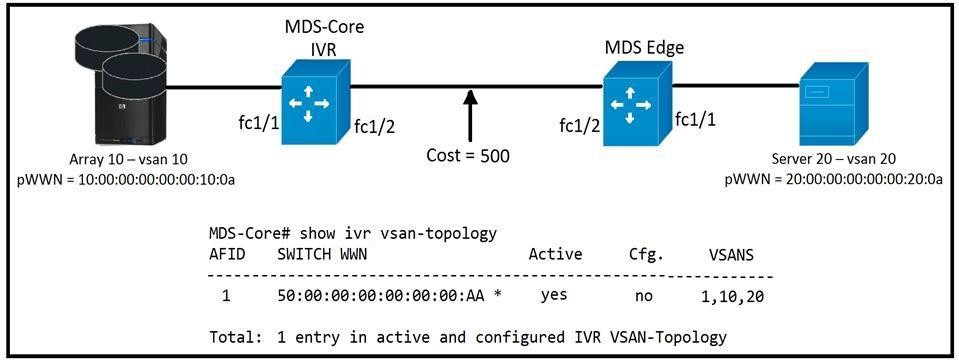

Refer to the exhibit.

An engineer is configuring Inter-VSAN routing for two Cisco MDS switches. The FSPF cost between the switches is 500, and the Cisco MDS core virtualizes an IVR NAT domain as shown. Which statement about the topology is correct?

• A. The MDS-Core simulates an IVR NAT, and the FSPF cost is 500.
• B. The MDS-Core simulates an IVR NAT, and increases the cost to 501.
• C. The MDS-Core simulates an IVR NAT, and decreases the cost to 400.
• D. The MDS-Core simulates an IVR NAT, and increases the cost to 600.

Answer: B

NEW QUESTION 13
Refer to the exhibit.

A port channel has been configured between a Cisco MDS and a Cisco Fabric Interconnect switch. Which interface(s) in the port channel carry the control plane traffic?

• A. per packet, balanced between interfaces fc1/9 and fc1/10
• B. from interface fc1/9
• C. from interface fc1/10
• D. per flow, balanced between interfaces fc1/9 and fc1/10

Answer: D

NEW QUESTION 14
What is the effect of a non-graceful virtual machine shutdown on a virtualized server that is connected to a SAN with Fibre Channel interfaces?

• A. NP Port reload connected to the upstream SAN switch
• B. out-of-service Fibre Channel interfaces on the SAN switch
• C. frames stuck in the storage system
• D. frames stuck in the HBA buffer of the server

Answer: B

NEW QUESTION 15
Two stable fabrics have overlapping domains. After a switch from the first domain is joined to a switch from the second domain, both switches become isolated. What caused the problem?

• A. The autoreconfigure option is disabled on both switches.
• B. The autoreconfigure option is enabled on both switches.
• C. The rcf-reject option is enabled on the interfaces.
• D. The rcf-reject option is disabled on the interfaces.

Answer: A

NEW QUESTION 16

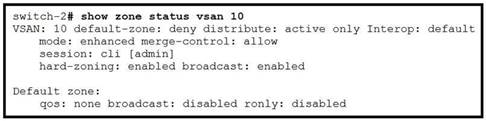

Refer to the exhibit.

A user who is logged in as an operator cannot update the zoneset. What is the cause of this issue?

• A. The fabric is locked by admin on switch-2.
• B. Hard zoning is enabled.
• C. Merge control is disabled.
• D. The switch has a conflicting domain ID.
• E. The fabric is locked by admin on another switch.

Answer: A

NEW QUESTION 17
Which result occurs if a device alias is renamed and then the original device alias name is used in an add command in the same session?

• A. Both commands execute successfully.
• B. The device alias is renamed and the add command is moved to the rejected list.
• C. Both commands are moved to the rejected list.
• D. The rename command is moved to the rejected list and the add command executes successfully.

Answer: A

NEW QUESTION 18
What does an unlicensed DCNM SAN fail to display?

• A. Fibre Channel, FCoE, and iSCSI topologies
• B. events and fault management
• C. historical performance monitoring
• D. real-time performance monitoring

Answer: C

NEW QUESTION 19
Which EtherType is used by the FCoE Initialization Protocol?

• A. 0×8913
• B. 0×8914
• C. 0×xfc0e
• D. 0×8906

Answer: B

NEW QUESTION 20
Which configuration is available only in Cisco DCNM-SAN Advanced mode?

• A. IVR
• B. VMpath configuration
• C. zoning
• D. template-based provisioning

Answer: A
